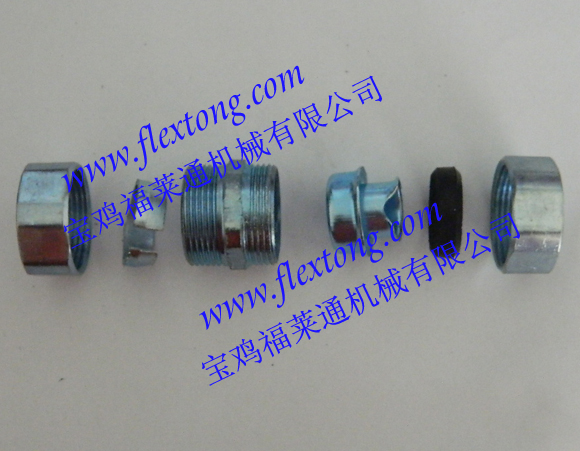

Set screw flexible conduit fittings/DGJ type
DGJ type fittings for no thread pipe
Material:zinc alloy, surface with zinc or chromium plated.
Protection class: IP67,
Part No. |
Thread |
Suit Conduit Size |
適配水煤氣管 |
適配電線管 |
|||||
Part No. |
G |
英制(Inch) |
公稱直徑 |
公稱 |
英稱 |
外徑×壁厚(mm) |
公稱 |
英稱 |
外徑×壁厚(mm) |
DGJ-09 |
G3/8” |
3/8” |
12 |
#12 |
3/8” |
17 × 2.25 |
#15 |
5/8″ |
15.87 × 1.60 |
DGJ-11 |
G1/2” |
1/2” |
16 |
#15 |
1/2” |
21.25 × 2.75 |
#20 |
3/4″ |
19.05 × 1.80 |
DGJ-12 |
G3/4” |
3/4” |
20 |
#20 |
3/4” |
26.75 × 2.75 |
#25 |
1″ |
25.40 × 1.80 |
DGJ-13 |
G1” |
1” |
25 |
#25 |
1” |
33.5 × 3.25 |
#32 |
1/1/4″ |
31.75 × 1.80 |
DGJ-14 |
G1-1/4” |
1-1/4” |
32 |
#32 |
1-1/4” |
42.25 × 3.25 |
#40 |
1/1/2″ |
38.10 × 1.80 |
DGJ-15 |
G1-1/2” |
1-1/2” |
38 |
#40 |
1-1/2” |
75.5 × 3.75 |
#50 |
2″ |
50.80 × 2.0 |
DGJ-16 |
G2” |
2” |
51 |
#50 |
2” |
75.5 × 3.75 |
#70 |
2/1/2″ |
63.50 × 2.5 |
DGJ-17 |
G2-1/2” |
2-1/2”” |
64 |
#70 |
2-1/2”” |
75.5 × 3.75 |
#80 |
3″ |
76.2 × 3.20 |
DGJ-18 |
G3” |
3” |
75 |
#80 |
3” |
88.5 × 4 |
|
|
|
DGJ-19 |
G4” |
4” |
100 |
#100 |
4” |
114 × 4 |
|
|
|
